SB SERIES Soft Jaws

Kitagawa's original equipment offers consistently high quality.

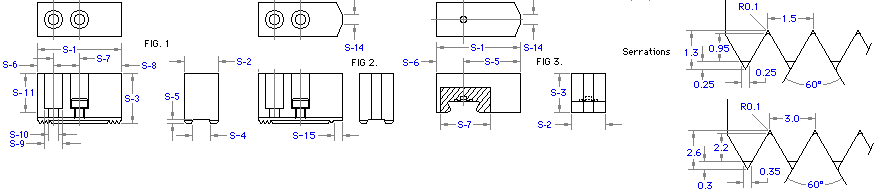

DIMENSIONS (Dimensions in Millimeters)

MODEL	S-1	S-2	S-3	S-4	S-5	S-6	S-7	S-8	S-9	S-10	S-11	S-12	S-14	S-15	Serrations	Fig.
SB04C1	48	19	23	8	3	8	15	25	11	6.6	15	M6	6		1.5x60°	2
SB04C1-036	48	19	36	8	3	8	15	25	11	6.6	28	M6			1.5x60°	1
SB04C1-048	48	19	48	8	3	8	15	25	11	6.6	40	M6			1.5x60°	1
SB04C1T	48	19	23	8	3	8	15	25	11	6.6	15	M6			1.5x60°	1
SB04C1T048	48	19	48	8	3	8	15	25	11	6.6	40	M6			1.5x60°	1
SB04B1	55	23	25	10	4	13	14	28	13.5	8.5	16	M8	3	13	1.5x60°	2
SB04B1-036	55	23	36	10	4	13	14	28	13.5	8.5	27	M8	3		1.5x60°	2
SB04B1-048	55	23	48	10	4	13	14	28	13.5	8.5	39	M8	3		1.5x60°	2
SB04A1T	55	23	25	10	4	13	14	28	13.5	8.5	16	M8			1.5x60°	1
SB04A1T048	55	23	48	10	4	13	14	28	13.5	8.5	39	M8			1.5x60°	1
SB04N1	49.5	23	23	10	4	10	14	25.5	13.5	8.5	14	M8	4		1.5x60°	2
SB04N1-036	49.5	23	36	10	4	10	14	25.5	13.5	8.5	14	M8			1.5x60°	1
SB04N1-048	49.5	23	48	10	4	10	14	25.5	13.5	8.5	14	M8			1.5x60°	1
SB05C1	57	23	31	10	3	10	18	29	13.5	8.5	22	M8	12		1.5x60°	2
SB05C1-038	57	23	38	10	3	10	18	29	13.5	8.5	29	M8			1.5x60°	1
SB05C1-053	57	23	53	10	3	10	18	29	13.5	8.5	44	M8			1.5x60°	1
SB05C1T	57	23	31	10	3	10	18	29	13.5	8.5	22	M8			1.5x60°	1
SB05C1T053	57	23	53	10	3	10	18	29	13.5	8.5	44	M8			1.5x60°	1
SB05B1	62	23	27	10	4	14	19	29	13.5	8.5	18	M8	12	14	1.5x60°	2
SB05A1-038	62	23	38	10	4	14	19	29	13.5	8.5	29	M8			1.5x60°	1
SB05A1-053	62	23	53	10	4	14	19	29	13.5	8.5	44	M8			1.5x60°	1
SB05A1T	62	23	27	10	4	14	19	29	13.5	8.5	18	M8			1.5x60°	1
SB05A1T053	62	23	53	10	4	14	19	29	13.5	8.5	44	M8			1.5x60°	1
SB05N1	54	23	25	10	4	12	14	28	13.5	8.5	16	M8	5		1.5x60°	2
SB05N1-038	54	23	38	10	4	12	14	28	13.5	8.5	29	M8			1.5x60°	1
SB05N1-053	54	23	53	10	4	12	14	28	13.5	8.5	44	M8			1.5x60°	1
SB06B1	72	31	32	12	5	15	20	37	17	11	20	M10	12	15	1.5x60°	2
SB06A1-066	72	36	66	12	5	15	20	37	17	11	54	M10			1.5x60°	1
SB06A2	75	32	36	12	6	19	20	36	17	11	23	M10			3.0x60°	1
SB06A2-057	75	32	57	12	6	19	20	36	17	11	44	M10			3.0x60°	1
SB06A2-077	75	32	77	12	6	19	20	36	17	11	64	M10			3.0x60°	1
SB06A1T	72	31	32	12	5	15	20	37	17	11	20	M10			1.5x60°	1
SB06A1T066	72	31	66	12	5	15	20	37	17	11	54	M10			1.5x60°	1
SB06C1	76.5	40	37	14	5	15	25	36.5	19	13	22	M12			1.5x60°	1
SB06L1A	66	26	28	12	5	12	20	34	17	11	16	M10			1.5x60°	2
SB06L1T	66	26	28	12	5	12	20	34	17	11	15	M10	5	12	1.5x60°	1
SB08B1	95	35	38	14	5	24	25	46	19	13	23	M12	12	20	1.5x60°	2
SB08A1-056	95	35	56	14	5	24	25	46	19	13	41	M12			1.5x60°	1
SB08A1-076	95	35	76	14	5	24	25	46	19	13	61	M12			1.5x60°	1
SB08A2	95	35	42	14	6	24	25	46	19	13	26	M12			3.0x60°	1
SB08A2-077	95	35	77	14	6	24	25	46	19	13	61	M12			3.0x60°	1
SB08A1T	95	35	38	14	5	24	25	46	19	13	23	M12			1.5x60°	1
SB08A1T056	95	35	56	14	5	24	25	46	19	13	41	M12			1.5x60°	1
SB08A1T076	95	35	76	14	5	24	25	46	19	13	61	M12			1.5x60°	1
SB10B1	110	40	42	16	5	30	30	50	19	13	27	M12	15	20	1.5x60°	2
SB10A1	110	40	42	16	5	30	30	50	19	13	27	M12	15	20	1.5x60°	2
SB10A1-056	110	40	56	16	5	30	30	50	19	13	41	M12			1.5x60°	1
SB10A1-080	110	40	80	16	5	30	30	50	19	13	65	M12			1.5x60°	1
SB10A1-116	110	40	116	16	5	30	30	50	19	13	101	M12			1.5x60°	1
SB10A2Q	110	40	42	16	6	30	30	50	19	13	26	M12			3.0x60°	1
SB10A2Q080	110	40	80	16	6	30	30	50	19	13	64	M12			3.0x60°	1
SB10A2	110	40	42	16	6	30	30	50	19	13	26	M12			3.0x60°	1
SB10A2-080	110	40	80	16	6	30	30	50	19	13	65	M12			3.0x60°	1
SB10A1T	110	40	42	16	5	30	30	50	19	13	27	M12			1.5x60°	1
SB10A1T080	110	40	80	16	5	30	30	50	19	13	65	M12			1.5x60°	1
SB12A1	129	50	50	18	5	39	30	60	23	15	30	M14			1.5x60°	1
SB12A1-090	129	50	90	18	5	39	30	60	23	15	70	M14			1.5x60°	1
SB12C1	129	50	50	18	5	32	38	59	23	15	35	M14			1.5x60°	1
SB12A2	129	50	50	18	6	32	38	59	23	15	34	M14			3.0x60°	1
SB12A2-127	129	50	127	18	6	32	38	59	23	15	111	M14			3.0x60°	1
SB12A1T	129	50	50	18	5	39	30	60	23	15	30	M14			1.5x60°	1
SB12A1T090	129	50	90	18	5	39	30	60	23	15	70	M14			1.5x60°	1
SB12N1	111	50	50	21	4	21	30	60	25	17	33	M16			1.5x60°	1
SB12N1-090	111	50	90	21	4	21	30	60	25	17	73	M16			1.5x60°	1
SB12N1T	111	50	50	21	4	21	30	60	25	17	33	M16			1.5x60°	1
SB15C1	165	62	66	22	8	37	43	85	32	21	42	M20			1.5x60°	1
SB15A1	156	62	70	22	8	36	60	60	32	21	45	M20			1.5x60°	1
SB15A1-110	156	62	110	22	8	36	60	60	32	21	85	M20			1.5x60°	1
SB15A2	156	62	70	22	9	36	60	60	32	21	45	M20			3.0x60°	1
SB15AQ	129	50	50	18	6	32	38	59	23	15	34	M14			3.0x60°	1
SB15C1T	165	62	66	22	8	37	43	85	32	21	42	M20			1.5x60°	1
SB15N1	135	50	60	25.5	5	26	43	66	32	21	39	M20			1.5x60°	1
SB15N1-110	135	50	110	25.5	5	26	43	66	32	21	89	M20			1.5x60°	1
SB18A2	180	65	70	25	9	40	60	80	32	21	45	M20			3.0x60°	1
SB18A2-110	180	65	110	25	9	40	60	80	32	21	85	M20			3.0x60°	1
SB24A2	210	75	90	25	9	40	80	90	32	21	65	M20			3.0x60°	1
SB24A2-130	210	75	130	25	9	40	80	90	32	21	105	M20			3.0x60°	1
SB06BB	90	32	30	24	54	36	68						5			3
SB06BB-040	90	32	40	24	54	36	68						5			3
SB08BB	106	37	38	28	64	42	76						14			3
SB08BB-056	106	37	56	28	64	42	76						14			3
SB10BB	125	42	42	31	76	49	88						26			3
SB10BB-060	125	42	60	31	76	49	88						26			3
SB12BB	139	42	50	34	90	49	92						30			3
SB12BB-070	139	42	70	34	90	49	92						30			3
PW-06	67.5	50.8	51	38.07	3.3	15	29.36	23.14	17	11	42.4	M10	8			2
PW-08	74	57	57.47	44.45	3.3	15	34.14	24.86	20	13.5	47	M12				1
PW-10	89.5	70.1	70.2	57.1	3.3	19	44.45	26.05	25	17	59	M16				1
PW-12	108.5	70.1	70.2	57.1	3.3	19	44.45	45.05	25	17	59	M16				1
PW-15	140	76.2	76.5	66.62	3.3	23.9	53.58	62.12	32	21	61.2	M20				1

Worldwide Chuck Services is a master distributor of Kitagawa products.
