FG SERIES Wheel Chucks |
| |
Three-jaw wheel chucks for motorcycle and automobile as well as six-jaw wheel chucks for truck applications. Efficient, high speed turning of aluminum wheels.
Special Features
- High Speed
- Chuck Body Balanced from Factory (w/i 3 grams at OD)
- Mirror Finish Capabilities
- Seating Confirmation Feature Standard
- Strong/High Endurance
- Strong Axial Clamping Method
- Easy Set-up and Change-Over
|
SPECIFICATIONS
| |
UNIT |
FG52M |
FG50L |
FG62L |
FG56L |
| Application |
|
Motorcycle |
Automobile |
Truck |
Automobile (Enhanced) |
| Wheel Size Range |
in. |
12 ~ 19 |
13 ~ 18 |
17.2 ~ 22.5 |
13 ~ 20 |
| Max Material Size |
in. |
|
19.8" |
|
22.1" |
| Max. Jaw Stroke |
in. |
1.063 |
1.063 |
1.063 |
1.063 |
| Max. Draw Bar Pull Force |
lbs. |
4630 |
6600 |
6600 |
6730 |
| Max. Gripping Force |
lbs. |
4300 |
6280 |
5950 |
6396 |
| Net Weight |
lbs. |
287 |
213 |
312 |
255 |
| Max. Speed |
rpm |
2500 |
3000 |
2500 |
3000 |
| GD 2 |
lbs.* ft 2 |
86 |
56 |
133 |
315 |
| Matching Cylinder |
|
YG-204 |
YG-204 |
YG-204 |
YG-204 |
Work Size |
| MODEL |
12" |
13" |
14" |
15" |
16" |
17" |
18" |
19" |
20" |
21.5" |
22.5" |
| FG52M |
X |
X |
X |
X |
X |
X |
X |
X |
|
|
|
| FG50L |
X |
X |
X |
X |
X |
X |
X |
|
|
|
|
| FG62L |
|
|
|
|
|
X |
X |
X |
X |
X |
X |
| FG56L |
|
X |
X |
X |
X |
X |
X |
X |
X |
|
|
DIMENSIONS (Dimensions in Inches)

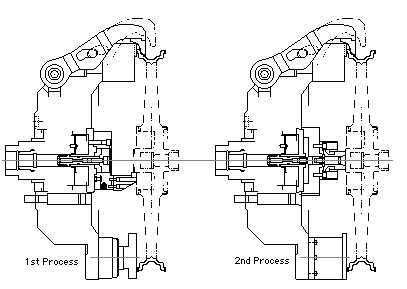

FG52M Dimensional Drawing

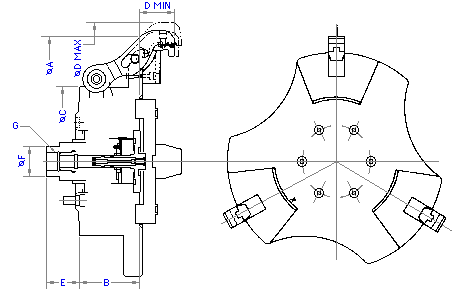

FG50L/FG62L Dimensional Drawing
| MODEL |
FG52M |
FG50L |
FG62L |
| A |
20.669 |
20.079 |
24.409 |
| B |
5.512 |
5.512 |
5.748 |
| C |
14.567 |
12.992 |
17.323 |
| D max. (1) |
25.945 |
24.567 |
25.984 |
| D min. |
5.315 |
2.953 |
2.913 |
| E max. |
2.559 |
2.559 |
2.559 |
| E min. |
1.496 |
1.496 |
1.496 |
| F |
2.677 |
2.677 |
2.677 |
| G |
M40x1.5 |
M40x1.5 |
M40x1.5 |
|
